Packaging Machines

Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Brand	Sensograph Packaging
Driven Type	Electric
Model	EP-02
Power(KW)	230 VAC

EASY Pac packaging machine can handle virtually all kind of free flowing solids. This packaging equipment handles grocery items such as rice, pulses, chana dal, toor dal, sugar, wheat, tea powder, green peas, white mutter and other items such as Namkeens, farsans, Chips, Frymes and similar products without any change parts or making changes in the settings, one can keep on toggling with different materials & different target weights on the same packing machine. Thanks to "Self learning software" developed by our R & D team.This machine has Two weighing heads and hopper capacity of 100 liters.



Product Details :

Minimum Order Quantity	1 Unit
Driven Type	Electric
Automatic Grade	Semi-Automatic, Automatic
Packaging Type	Pouches
Hopper Capacity	100 Liters
Weighing Range	50 gms to 1 kg
Air requirement	1 HP, 8 Bar pressure, 2 CFM
Power Requirement	1KW, Single phase 230 VAC
Machine Type	Automatic, Semi-Automatic
Automation Grade	Automatic
Sealing Type	Center Seal
Output	60-400 kg/hour

EASY PAC is the packaging equipment used for packing various types of solid free flowing items. This packaging equipment is named as EASY PAC to emphasis its ease of operation. This packaging equipment is semi automatic packing machine which uses load cell to weigh the item & dispense it into the ready pouch/box/container, etc. As the pouch making machine is not the integral part of this packing equipment, it is categorized as the semi automatic packing machine.

Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Driven Type	Electric
Power Source	Eletcric
Surface Finish	Galvanized

EASY PAC is the packaging equipment used for packing various types of solid free-flowing items. This packaging equipment is named as EASY PAC to emphasis its ease of operation.

This packaging equipment is semi-automatic packing machine which uses a load cell to weigh the item & dispense it into the ready pouch/box/container, etc. As the pouch making machine is not the integral part of this packing equipment, it is categorized as the semi-automatic packing machine.

Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Capacity (pouch per hour)	0-500, 500-1000, 1000-2000
Machine Power	0-1 HP
Machine Type	Automatic
Model	EP-02
Output	60-400 kg/hour
Pouch Capacity	10-50 grams, 50-200 grams, 200-400 grams, 400-600 grams, 600-1000 grams
Pouch Length	2
Hopper Capacity	100 Liters
Weighing Range	50 gms to 1 kg
Air requirement	1 HP, 8 Bar pressure, 2 CFM
Power Requirement	1KW, Single phase 230 VAC

Features :

• Machine works on single phase power
• Virtually maintenance free 24*7 operation
• Microcontroller based User-friendly HMI.
• In-house Developed Electric Hardware.
• Self-learning software eliminates tedious settings
• Timer, Auto dumping, Footswitch facility provided.

Advantages :

• No wear & tear as no moving parts in a machine.
• The flexibility of operation and production
• No change parts for the change of products
• Repetitive accurate weighment assured.

Benefits :

• Low Power consumption
• Just set weight & start packing
• No skilled operator required.
• Manpower saving.

Semi Automatic Weigh Filler Machine	Fully Automatic Weigh Filler Machine
Easy Pac	Fully Automatic Four Head Machine SP- 04 Smart Auto - EP - Fully Automatic Weigh Filler Machine

Yes! I am Interested

We are overwhelmed by the customer’s response for this machine. This machine virtually handles all kind of dry fruits such as Cashew Nuts, Pista, Kismis, Almonds etc. knowing these being costly items; the designing care is taken to provide high degree of weighing accuracy. Minimum breakage (or no breakage) of this fragile dry fruits is added advantage of machine.



Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Capacity (pouch per hour)	0-500, 500-1000, 1000-2000
Driven Type	Electric
Pouch Capacity	>1000 grams
Pouch Length	2
Surface Finish	Galvanized

This machine is suitable for packing of :

• Snacks Items: Chips, namkeen , farsan, frymes,Popcorn etc.
• Grocery Items: Dals,Peanuts,sugar, nuts,Dry fruit,Whole Spices,Poha,murmura,etc
• Hardware Items : Nuts, Washers, screw, dowel Pins etc
• Confectionery Items: Chocolates, lollipop, candies, toffees etc
• Frozen Foods: green peas, Chopped carrot, okra, prawns, shrimps etc.

NOTE : THE SPEED OF MACHINE MAY VARY ACCORDING TO PRODUCT AND GRAMMAGE.

Optional Accessories for FFS M/C:

• Nitrogen gas flushing unit
• Hole punching unit
• TTO for batch / date printing
• Gusseting unit
• Fast change of film roll unit
• D Cut.

Features :

• "Made In India" Multi head weigher, it incorporates the entire electrical, electronic , micro controller based system
• conceived designed, developed & manufactured in our state of art manufacturing facility.
• The software developed by our R & D team is incorporated in this machine.
• The HMI (Human Machine Interface) is a large touch screen (Size 215 mm(W) x 160mm (H)x 60mm (D) with indigenously developed software.
• Motorized pulling system.
• Strip or individual count cutting provided.
• Machine works on single phase.
• In house manufacturing of all electronic control instruments.

The machine is suitable for masala/plain round/long banana chips. To handle the varied variety of banana chips; the hopper, tray & software is suitably modified.



Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Brand	Sensograph Packaging
Capacity (pouch per hour)	1000-2000
Condition	New
Driven Type	Electric
Pouch Capacity	>1000 grams
Voltage (V)	230 VAC

This machine is suitable for packing of :

• Snacks Items: Chips, namkeen , farsan, frymes,Popcorn etc.
• Grocery Items: Dals,Peanuts,sugar, nuts,Dry fruit,Whole Spices,Poha,murmura,etc
• Hardware Items : Nuts, Washers, screw, dowel Pins etc
• Confectionery Items: Chocolates, lollipop, candies, toffees etc
• Frozen Foods: green peas, Chopped carrot, okra, prawns, shrimps etc.

NOTE : THE SPEED OF MACHINE MAY VARY ACCORDING TO PRODUCT AND GRAMMAGE.

Optional Accessories for FFS M/C:

• Nitrogen gas flushing unit
• Hole punching unit
• TTO for batch / date printing
• Gusseting unit
• Fast change of film roll unit
• D Cut.

Features :

• "Made In India" Multi head weigher, it incorporates the entire electrical, electronic , micro controller based system
• conceived designed, developed & manufactured in our state of art manufacturing facility.
• The software developed by our R & D team is incorporated in this machine.
• The HMI (Human Machine Interface) is a large touch screen (Size 215 mm(W) x 160mm (H)x 60mm (D) with indigenously developed software.
• Motorized pulling system.
• Strip or individual count cutting provided.
• Machine works on single phase.
• In house manufacturing of all electronic control instruments.

Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Capacity (pouch per hour)	0-500, 500-1000
Pouch Capacity	10-50 grams, 50-200 grams, 200-400 grams, 400-600 grams, 600-1000 grams
Pouch Length	2
Model	SP- 01
Pouch Forming type	Collar
Material of construction	All contact parts in SS304, and other parts in MS
Power supply	1 phase,230 VAC
Floor area	23 sq.ft
Output	30-300 kg/ hr

This machine is suitable for packing of :

• Best suited for packing of Irregularly shaped products such as potato chips, extruded food, banana chips, cheese balls, bakery products, homogenous fine-grained products such as tea powder, seeds, sugar, whole spices etc.
• Homogenous coarse-grained products such as rice, wheat, pulses, Sabudana etc.
• Coarse products such as cashew nuts,almond, pistachio, whole spices, etc.
• Mix products such as namkeen, farsan, etc.
• Industrial products such as lugs, screws, nails, bolts, nuts, etc.
• Especially suited for Poha ( Rice Flakes), Murmure, corn flakes, candies, etc.
• Pharma products such as capsules, tablets, etc.

* Depending on the type of product & target weightFeatures:

• Virtually maintenance free 24 X 7 operation
• User-friendly HMI
• Self-learning software eliminates tedious settings
• Eye mark controller for perfect positioning of seal & cut
• Provision for the batch printing system
• No of pouches produced – count batch wise/day wise.
• Collar type forming system for elegant pouches
• Leak proof sealed pouches assured through special vertical sealing method.
• Strip cut / single cut system provided
• Provision of nitrogen flushing provided.

WE HAVE DIFFERENT MODELS FOR DIFFERENT PRODUCTION REQUIREMENT, LOW, MODERATE AND HIGH PRODUCTION CAPACITY.

Basically a mesh is a tool and not a machine. Other Options available include machines that count tablets based on weight. But then, even this method is not accurate since there are small variations in weights of the tablets due to compression.Sensograph has successfully introduced a solution which overcomes these problems and which has already found acceptance in many countries. The system is based on Multi-track vibrating Mechanism with high speed non contact type sensing. This is fully automatic and ensures that each and every tablet is counted without human intervention. Typically 1,00,000 to 2,00,000 tablets are counted per hour depending upon count of each pack.

Depending upon the type of product & target weight.

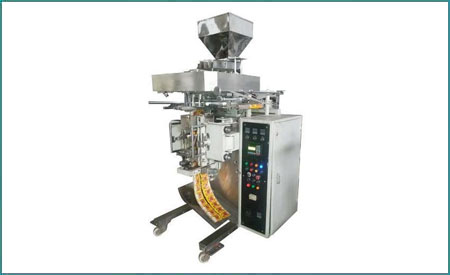

Massively used for packaging of plastic caps and rubber items, this Fully Automatic Counting Machine is manufactured in adherence to the predefined industry guidelines. Having inbuilt eye mark controller and full or half-cut count systems, the proffered machines are quite efficient and easy to operate.

Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Capacity (pouch per hour)	0-500, 500-1000
Pouch Capacity	10-50 grams, 50-200 grams, 200-400 grams, 400-600 grams, 600-1000 grams
Pouch Length	2
Model	SP- 01
Pouch Forming type	Collar
Material of construction	All contact parts in SS304, and other parts in MS
Power supply	1 phase,230 VAC
Floor area	23 sq.ft
Output	30-300 kg/ hr

This machine is suitable for packing of :

• Best suited for packing of Irregularly shaped products such as potato chips, extruded food, banana chips, cheese balls, bakery products, homogenous fine-grained products such as tea powder, seeds, sugar, whole spices etc.
• Homogenous coarse-grained products such as rice, wheat, pulses, Sabudana etc.
• Coarse products such as cashew nuts,almond, pistachio, whole spices, etc.
• Mix products such as namkeen, farsan, etc.
• Industrial products such as lugs, screws, nails, bolts, nuts, etc.
• Especially suited for Poha ( Rice Flakes), Murmure, corn flakes, candies, etc.
• Pharma products such as capsules, tablets, etc.

* Depending on the type of product & target weightFeatures:

• Virtually maintenance free 24 X 7 operation
• User-friendly HMI
• Self-learning software eliminates tedious settings
• Eye mark controller for perfect positioning of seal & cut
• Provision for the batch printing system
• No of pouches produced – count batch wise/day wise.
• Collar type forming system for elegant pouches
• Leak proof sealed pouches assured through special vertical sealing method.
• Strip cut / single cut system provided
• Provision of nitrogen flushing provided.

WE HAVE DIFFERENT MODELS FOR DIFFERENT PRODUCTION REQUIREMENT, LOW, MODERATE AND HIGH PRODUCTION CAPACITY.
