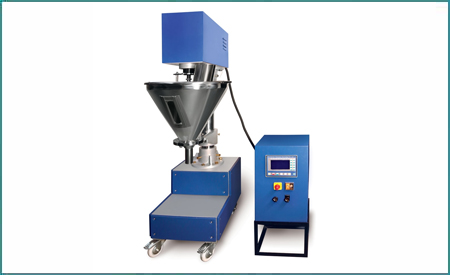

Semi Automatic Auger Filler Machine

Sure Pac Weigh Filler

This packaging equipment uses screw drive to dispense the powder material such as wheat atta, rice atta , turmeric powder, chilli powder, spices etc. The ready pouch is kept below the screw on the platform provided in this packing machine.

The continuous weighing of the material dispensed through the screw (filled into the pouch) is done & the feedback is given to the controller of the screw drive. The specially developed software for this packing equipment accurately controls the moment of the screw thus giving accurate weight.

Ask for Price

Product Details :

TECHNICAL SPECIFICATION:
Product Characteristics	Powder form.
Hopper Capacity	25 Liters
Weighing Range	10 gms to 100 gms *
	50 gms to 1 kg *
Output	72-600 kg/hour.
Type of Bags	Open mouth preformed bags/ pouch of LD,PP etc
Power Requirement	415 VAC, Three phase
Material Construction	All contact parts SS304 & other parts of MS.
*Depending upon Products..

Depending upon the type of product & target weight Features :

Features :

Virtually maintenance free 24*7 operation
Micro controller based user friendly HMI-count setting through number and arrow
Inhouse Developed Electric Hardware.
Timer, Auto dumping, Foot switch facility provided.
Feeding mechanism through Servo motor, which enables high speed along with excellent accuracy.
To pack all non free flowing powder items.
Separator motor driven stirrer.

Advantages :

Flexibility and ease of operation
Excellent screw design ensures repetitive and within range “Count” and hence weighment.
No skilled operator required
Man power saving.

Application :

Wheat Flour (Atta) Packing Machine
Rice Flour (Atta) Packing Machine
Besan Packing Machine
Spices Packing Machine
Chilli Powder Packing Machine
Turmeric Powder Packing Machine
Dry Cement Packing Machine
Coffee Powder Packing Machine
Curry Powder Packing Machine
Chemical Powder Packing Machine
Bleaching Powder Packing Machine

Benefits :

Easy change of screw while change of products
Movable machine
Ensures flexibility
Low power consumption

WE HAVE DIFFERENT MODELS FOR DIFFERENT PRODUCTION REQUIREMENT, LOW, MODERATE AND HIGH PRODUCTION CAPACITY.

Yes! I am Interested

Transcript
This packaging equipment uses screw drive to dispense the powder material such as wheat atta, rice atta , turmeric powder, chilli powder, spices etc. The ready pouch is kept below the screw on the platform provided in this packing machine. The continuous weighing of the material dispensed through the screw (filled into the pouch) is done & the feedback is given to the controller of the screw drive. The specially developed software for this packing equipment accurately controls the moment of the screw thus giving accurate weight.

Smart Pac - Auger Filler Machine

In Auger Filler Machine, the material to be filled is stored in the hopper. The stirrer of the machine facilitates the prevention of any bridging of the material.

The Servo motor drive of the machine provides the perfection of accuracy and speed of the machine.

Ask for Price

Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Customized	Yes
Machine Type	Automatic, Semi-Automatic
Phase	Three Phase
Sealing Type	Center Sealing
Surface Treatment	Galvanized

This machine is suitable for packing of :

Wheat Flour (Atta)
Rice Flour (Atta)
Besan Packing
Spices Packing
Chilli Powder Packing
Turmeric Powder Packing
Dry Cement Packing
Coffee Powder Packing
Curry Powder Packing
Chemical Powder Packing
Bleaching Powder Packing

Features :

Virtually maintenance free 24X7 operation
Micro controller based User friendly HMI.
In house Developed Electric Hardware.
Feeding mechanism through Servo motor, which enables high speed along with excellent accuracy.
Eye mark controller for perfect positioning of seal & cut
Provision for batch printing system (to be selected by you)
No film -machine stop mechanism (optional)
No material - machine stop mechanism (optional)
Easy change of roll system - (optional)
No’s of pouches produced - count batch wise/day wise.
Horizontal sealer with servo motor drive available as an option

WE HAVE DIFFERENT MODELS FOR DIFFERENT PRODUCTION REQUIREMENT, LOW, MODERATE AND HIGH PRODUCTION CAPACITY.
