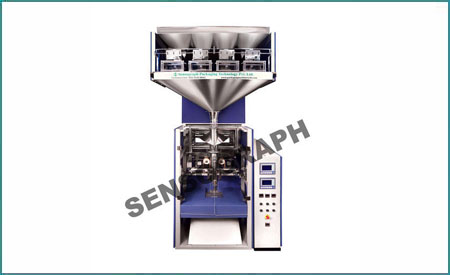

Fully Automatic Weigh Filler Machine

This packaging equipment is meant for handling bigger pouch sizes i.e. it accept plastic film width up to 620 mm. This packing machine uses famously known “Collar” for forming the pouch. The horizontal sealing is done through pneumatic system. The vertical travel of plastic film is done through stepper motor driven belts. Similar to Sensograph’s other automatic packaging machines, this SMART PAC does carry all standard systems such as nitrogen flushing system, eye mark system, half/full cut count system. The SMART PAC packaging equipment accepts material from all dispensing systems such as Weigh Filler (EASY PAC).

Yes! I am Interested

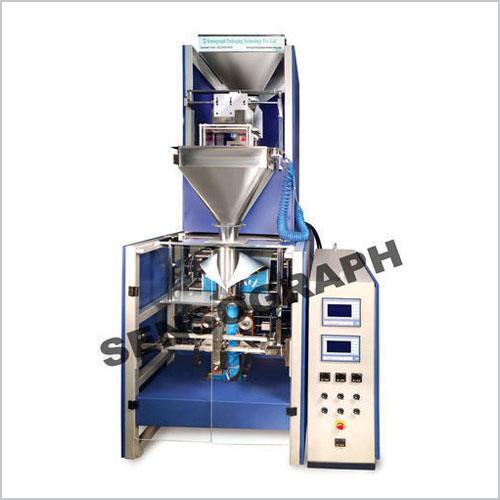

This packaging equipment is fully automatic packing machine which accept material from any of the three dispensing systems namely weigh filler (EASY PAC), Auger Filler (Sure PAC) or Cup Filler (V PAC). The smart way of operation of this packaging equipment automatically gained its name “SMART AUTO”. This packaging equipment accepts plastic film, converts it into pouch, accepts material from dispensing system & seals the filled pouches using pneumatically operated heaters. In this packaging equipment, eye mark controller, Nitrogen (gas) flushing system, Full/half cut count system are in built features. The settings for all these systems are available on operator’s finger tips. The pouch is formed using a former which can accept film of width below 390 mm. The vertical travel of the film & the vertical sealing is done through VFD/stepper motor controller. The height of plain pouches ( non printed – no eye mark) is smartly adjusted in this packing machine. The batch coding system is optional.


Technical Specifications

Parameter	Smart Auto - EP
Material of Construction	All contact parts SS 304, main frame –powder coated MS pipe/channels
GMP Model	All contact parts – SS 304, main frame - SS304 covered with SS 304 sheet. Mechanical parts – as per engineering design - SS304/MS/Aluminum/rubber/plastic
Sealing Type	Center seal - other sealing available on request
Sealing Method	Intermittent through pneumatic system
Pouch Width	Maximum 390 mm of roll width Translate to 7” pouch width
Pouch Height	Adjustable – maximum 310 mm.
Packing Range	10 gm to 2000 gm* - limited by pouch size
Vertical Seal Width	10 - 20 mm – typically 15 mm
Vertical Travel of Film	Metallic roller controlled by stepper motor drive
Pouch forming method	Through SS 304 former
Horizontal seal width	10-15 mm - typically 10 mm
Power Supply	230 V Ac, Single Phase
Power Consumption	1.5 Kw + 300 VA per head
Gas Flushing system	Available
Half/Full cut count	Available
Batch coding system	Pneumatic ink coding / Hot Foil printing
Heater control	PID controller provided on front panel
HMI Display	Alfa numeric , 4” LCD back lit display through micro controller based system
HMI Display	2 nos - 1 for weight setting + 1 for pouch setting
Dispensing Method	By weight this Linear Vibratory
