Semi Automatic Weigh Filler Machine

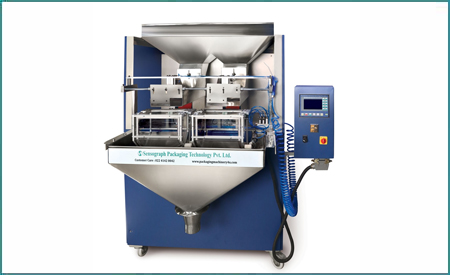

EASY PAC is the packaging equipment used for packing various types of solid free flowing items. This packaging equipment is named as EASY PAC to emphasis its ease of operation. This packaging equipment is semi automatic packing machine which uses load cell to weigh the item & dispense it into the ready pouch/box/container, etc. As the pouch making machine is not the integral part of this packing equipment, it is categorized as the semi automatic packing machine.

Depending upon number of weighing heads, this EASY PAC packaging equipment is named as single head (one head), Twin head (two heads), three heads & four heads. The speed of twin head is double the single head & the speed of four head is double the twin head or four times the single head.

EASY Pac packaging machine can handle virtually all kind of free flowing solids. This packaging equipment handles grocery items such as rice, pulses, chana dal, toor dal, sugar, wheat, tea powder, green peas, white mutter & similar products without any change parts or making changes in the settings, one can keep on toggling with different materials & different target weights on the same packing machine. Thanks to “Self learning software” developed by our R & D team.


As stated above, our EASY Pac packaging equipment can handle namkeen items such as farsan, mixure, poha chiwada, alu bhujia, chips, peanuts, mung dal & many more.

Under EASY PAC configuration, sensograph has developed packaging machine to handle dry fruit items such as Cashew Nuts, Almonds, Pista, Charoli, Walnuts, Raisins etc. This packaging equipment is thus named as EASY PAC - DF.

EASY PAC - CS is meant for handling irregular shaped solid items such as potato chips, long banana chips, long kurkure etc.

Whether it is EASY PAC std or EASY PAC-DF or EASY PAC - CS, “the ease of operation & No change part/setting” is at the center point in sensograph packing machines.

Technical Specifications

Parameter	Easy Pac - SH	Easy Pac - DH	Easy Pac - TH	Easy Pac - FH
No of Heads	One	Two	Three	Four
Feeding Method	Through Linear Vibratory trays
Weighing Range	3 gms to 2000 gms* ( limited by the volume of weighing pan)
Speed (DPM)	3-8*	5-14*	8-20*	10-32*
Weighing accuracy	0.1 - 2% *
Power Supply	230 V AC
Power consumption	300 VA per head
Utility Requirement	Air Compressor for Weigh Pan Open/Close

* Depending upon the type of product & target weight.

Yes! I am Interested

The continuous weighing of the material dispensed through the screw (filled into the pouch) is done & the feedback is given to the controller of the screw drive. The specially developed software for this packing equipment accurately controls the moment of the screw thus giving accurate weight.

Depending upon the type of product & target weight



Features :

• Virtually maintenance free 24*7 operation
• Micro controller based user friendly HMI-count setting through number and arrow
• Inhouse Developed Electric Hardware.
• Timer, Auto dumping, Foot switch facility provided.
• Feeding mechanism through Servo motor, which enables high speed along with excellent accuracy.
• To pack all non free flowing powder items.
• Separator motor driven stirrer.

Advantages :

• Flexibility and ease of operation
• Excellent screw design ensures repetitive and within range "Count" and hence weighment.
• No skilled operator required
• Man power saving.

Application :

• Wheat Flour (Atta) Packing Machine
• Rice Flour (Atta) Packing Machine
• Besan Packing Machine
• Spices Packing Machine
• Chilli Powder Packing Machine
• Turmeric Powder Packing Machine
• Dry Cement Packing Machine
• Coffee Powder Packing Machine
• Curry Powder Packing Machine
• Chemical Powder Packing Machine
• Bleaching Powder Packing Machine

Benefits

• Easy change of screw while change of products
• Movable machine
• Ensures flexibility
• Low power consumption

WE HAVE DIFFERENT MODELS FOR DIFFERENT PRODUCTION REQUIREMENT, LOW, MODERATE AND HIGH PRODUCTION CAPACITY.

Product Details:

Minimum Order Quantity	1 Unit
Automatic Grade	Semi-Automatic
Automation Grade	Semi-Automatic
Brand	Sensograph Packaging
Driven Type	Electric
Orientation	Vertical
Power Consumption	Three Phase
Voltage (Volt)	230 VAC

* Depending upon the type of product & target weight.

Yes! I am Interested

The continuous weighing of the material dispensed through the screw (filled into the pouch) is done & the feedback is given to the controller of the screw drive. The specially developed software for this packing equipment accurately controls the moment of the screw thus giving accurate weight.

Depending upon the type of product & target weight



Features :

• Virtually maintenance free 24*7 operation
• Micro controller based user friendly HMI-count setting through number and arrow
• Inhouse Developed Electric Hardware.
• Timer, Auto dumping, Foot switch facility provided.
• Feeding mechanism through Servo motor, which enables high speed along with excellent accuracy.
• To pack all non free flowing powder items.
• Separator motor driven stirrer.

Advantages :

• Flexibility and ease of operation
• Excellent screw design ensures repetitive and within range "Count" and hence weighment.
• No skilled operator required
• Man power saving.

Application :

• Wheat Flour (Atta) Packing Machine
• Rice Flour (Atta) Packing Machine
• Besan Packing Machine
• Spices Packing Machine
• Chilli Powder Packing Machine
• Turmeric Powder Packing Machine
• Dry Cement Packing Machine
• Coffee Powder Packing Machine
• Curry Powder Packing Machine
• Chemical Powder Packing Machine
• Bleaching Powder Packing Machine

Benefits

• Easy change of screw while change of products
• Movable machine
• Ensures flexibility
• Low power consumption

WE HAVE DIFFERENT MODELS FOR DIFFERENT PRODUCTION REQUIREMENT, LOW, MODERATE AND HIGH PRODUCTION CAPACITY.

Product Details:

Minimum Order Quantity	1 Unit
Automatic Grade	Semi-Automatic
Automation Grade	Semi-Automatic
Brand	Sensograph Packaging
Driven Type	Electric
Orientation	Vertical
Power Consumption	Three Phase
Voltage (Volt)	230 VAC

* Depending upon the type of product & target weight.
