Packaging Machines

Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Capacity (pouch per hour)	1000-2000
Pouch Capacity	>1000 grams

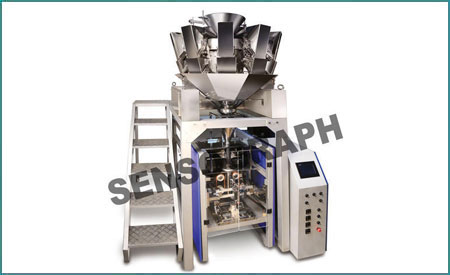

Looking at the typical nature of farsan (Mixture / Namkeen) which contains various ingredients; it was a task for us to make a machine which will fill the farsan without getting segregated the individual ingredients. Our R & D team has done it successfully and today more than 100 installations across the globe are working satisfactorily. The "self learning" software developed for this machine assures reliable repetitive accurate weighing, filling & packing system.

Technical Specifications :

Items to be Packed	Granular, Fluffy, Irregular shaped, Solids
Max Capacity	5g- 1kg
Accuracy	0.1 - 1.5 gms
Max Speed	45-60 pouches per minutes*
Pouch width	50-250 mm
Pouch length	65 - 330 mm
Film Width	120 -530 mm
Power requirement	2KW, Single phase 230 VAC
Material Construction	All contact parts SS304, & other parts of MS
Air Requirement	2HP,8Bar Pressure.2 CFM
Forming type	Collar
Vertical seal width ( mm)	10/15 typical
Horizontal seal width (mm)	10/15 typical
no of weighing  Pan	10no
Dimension (W x H xD) in ft.	7 x 11 x 6 (without Conveyor).
Serration and cutting	Count cutting provided, count to be fed through HMI
Control of FFS	Through micro controller
Eye mark controller	Provided.
Process parameter setting	Through HMI
Film draw mechanism	Through steeper/ servo motor
Horizontal sealing mechanism	Pneumatic
Vertical seal mechanism	Pneumatic

*NOTE : THE SPEED OF MACHINE MAY VARY ACCORDING TO PRODUCT AND GRAMMAGE.

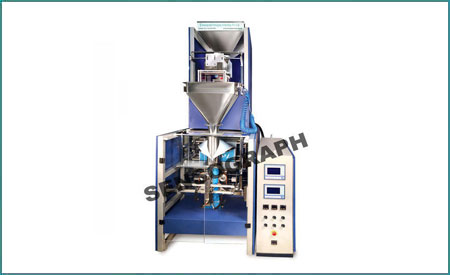

The machine has been designed, fabricated, keeping in mind that it is to handle sugar. Sugar being hygroscopic in nature proper care has been taken to avoid gaps and high quality insulation, gasketing is done for electrical/electronic panel.



Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Semi-Automatic, Automatic
Brand	Sensograph Packaging Technology Pvt Ltd
Capacity (Pouch per hour)	0-500, 500-1000, 1000-1500
Driven Type	Electric
Machine Type	Manual, Automatic
Power(KW)	Single Phase

Yes! I am Interested

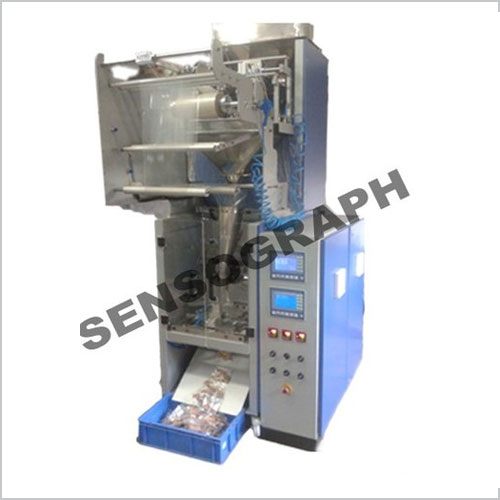

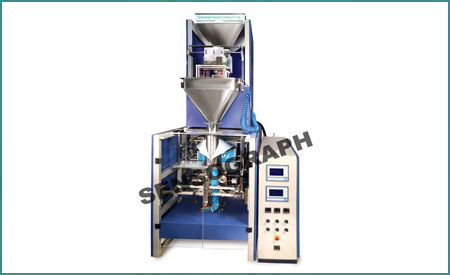

Tea Powder Packing Machine similar to Sugar Packing Machine is designed considering the application. A magnetic mesh is provided (optional) to remove the iron particles from tea powder before it is stored in the machine feeding hopper. The speed, accuracy & repeatability are maintained as usual.



Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Semi-Automatic, Automatic
Brand	Electric
Machine Type	Automatic, Semi-Automatic, Manual
Packaging Material	Tea
Power Consumption	Single Phase

The material feeding system is weighmatric means it feed the material to the pouching machine by weighing. The actual weight of the material is displayed on the 5” display provided on the front panel. The roll feeding is made easy in this machine. The quick changeover of ‘former’ makes it useful for medium scale packing requirement where frequent change of material & pack size is essential.

This machine is suitable for packing of :

• Homogenous coarse grained products such as rice,dals, wheat, pulses, Sabudana etc.
• Coarse products such as cashew nuts, almond, pistachio, whole spices, etc.
• Industrial products such as lugs, screws, nails, bolts, nuts, etc.
• Pharma products such as capsules, tablets, etc.

Features :
Virtually maintenance free 24X7 operationUser friendly HMISelf-learning software eliminate tedious settingsEye mark controller for perfect positioning of seal & cutProvision for batch printing systemNo of pouches produced – count batch wise/day wise.Leak proof sealed pouches assured through special vertical sealing method.Strip cut / single cut system providedProvision of nitrogen flushing provided.



Product Details :

Minimum Order Quantity	1 Piece
Packing Speed	600 - 3000 Packets Per Hour
Filler Type	Weigh Filler
Machine Type	Automatic
Pouch Capacity	10 - 1000 Grams
Usage/Application	Tea Packaging

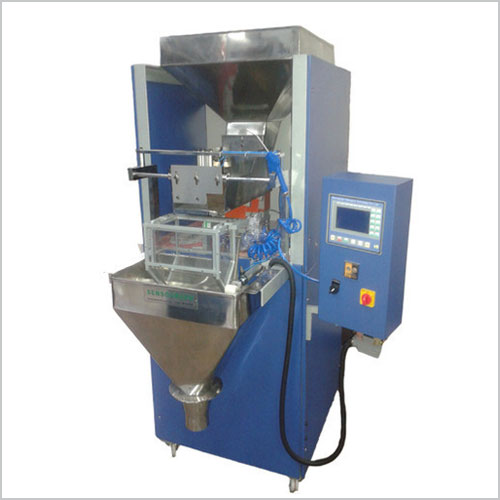

EASY PAC is the packaging equipment used for packing various types of solid free flowing items. This packaging equipment is named as EASY PAC to emphasis its ease of operation. This packaging equipment is semi automatic packing machine which uses load cell to weigh the item & dispense it into the ready pouch/box/container, etc. As the pouch making machine is not the integral part of this packing equipment, it is categorized as the semi automatic packing machine.Depending upon number of weighing heads, this EASY PAC packaging equipment is named as single head (one head), Twin head (two heads), three heads & four heads. The speed of twin head is double the single head & the speed of four head is double the twin head or four times the single head.EASY Pac packaging machine can handle virtually all kind of free flowing solids. This packaging equipment handles grocery items such as rice, pulses, chana dal, toor dal, sugar, wheat, tea powder, green peas, white mutter & similar products without any change parts or making changes in the settings, one can keep on toggling with different materials & different target weights on the same packing machine. Thanks to “Self learning software” developed by our R & D team.

Features :
Machine works on single phase powerIn house of all electric controlsSolid granular uneven shaped products can be handled in one machine.Virtually maintenance free 24*7 operationMicro controller based User friendly HMI.In house Developed Electric Hardware.Self learning software eliminate tedious settingsTimer, Auto dumping, Foot switch facility provided.

Advantages :
No wear & tear as no moving parts in machine.Flexibility of operation and productionNo change parts for change of productsrepetitive accurate weighment assured.



Product Details :

Minimum Order Quantity	1 Piece
Packing Speed	600 - 3000 Packets Per Hour
Filler Type	Weigh Filler
Machine Type	Semi Automatic
Pouch Capacity	10 - 1000 Grams
Application	Tea Packaging

EASY PAC is the packaging equipment used for packing various types of solid free flowing items. This packaging equipment is named as EASY PAC to emphasis its ease of operation. This packaging equipment is semi automatic packing machine which uses load cell to weigh the item & dispense it into the ready pouch/box/container, etc. As the pouch making machine is not the integral part of this packing equipment, it is categorized as the semi automatic packing machine.



Product Details :

Minimum Order Quantity	1 Piece
Packing Speed	600 - 3000 Packets Per Hour
Filler Type	Weigh Filler
Machine Type	Semi Automatic
Pouch Capacity	10 - 1000 Grams
Application	Tea Packaging

Technical Specifications :

Model	EP-02
Product characteristics	Free flowing granules solids.
Hopper Capacity	100 Liters
Weighing Range	50 gms to 1 kg
	10-100g
Output	60-400 kg/hour.*
Type of Bags	Open mouth preformed bags/ pouch of LD,PP etc
Air requirement	1 HP, 8 Bar pressure, 2 CFM.
Power Requirement	1KW, Single phase 230 VAC
Material Construction	All contact parts SS304 & other parts of MS.
*Depending upon product and grammage.

Being very low in bulk density; its intricate shape makes it difficult to handle it for weighing & filling. A specially designed hopper takes care of this problem and guarantees high accuracy along with speed & repeatability.



Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Brand	Automatic
Capacity (pouch per hour)	0-500, 500-1000, 1000-2000
Condition	New
Driven Type	Electric
Model	MH-10
Pouch Capacity	10-50 grams, 50-200 grams, 200-400 grams, 400-600 grams, 600-1000 grams
Pouch Length	4"-6",6"-8",8"-10",10"-12"
Power(KW)	Single Phase

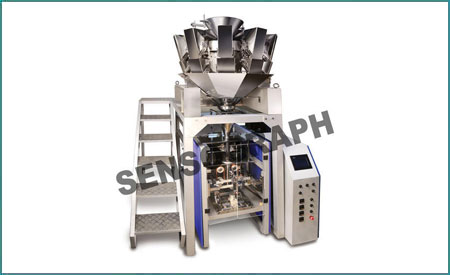

This machine is suitable for packing of :

• Snacks Items: Chips, namkeen , farsan, frymes,Popcorn etc.

Technical Specifications :

Items to be Packed	Granular, Fluffy, Irregular shaped, Solids
Max Capacity	5g- 1kg
Accuracy	0.1 - 1.5 gms
Max Speed	45-60 pouches per minutes*
Pouch width	50-250 mm
Pouch length	65 - 330 mm
Film Width	120 -530 mm
Power requirement	2KW, Single phase 230 VAC
Material Construction	All contact parts SS304, & other parts of MS
Air Requirement	2HP,8Bar Pressure.2 CFM
Forming type	Collar
Vertical seal width ( mm)	10/15 typical
Horizontal seal width (mm)	10/15 typical
no of weighing  Pan	10no
Dimension (W x H xD) in ft.	7 x 11 x 6 (without Conveyor).
Serration and cutting	Count cutting provided, count to be fed through HMI
Control of FFS	Through micro controller
Eye mark controller	Provided.
Process parameter setting	Through HMI
Film draw mechanism	Through steeper/ servo motor
Horizontal sealing mechanism	Pneumatic
Vertical seal mechanism	Pneumatic

Product Details :

Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Capacity (pouch per hour)	0-500, 500-1000, 1000-2000
Driven Type	Electric
Machine Power	0-1 HP, 1-2 HP
Machine Type	Automatic
Packaging Material	Plastic
Pouch Capacity	10-50 grams, 50-200 grams, 200-400 grams, 400-600 grams, 600-1000 grams
Power(KW)	230 vac
Sealing Type	Center Seal
Surface Finish	Galvanized

We are overwhelmed by the customer’s response for this machine. This machine virtually handles all kind of dry fruits such as Cashew Nuts, Pista, Kismis, Almonds etc. knowing these being costly items; the designing care is taken to provide high degree of weighing accuracy. Minimum breakage (or no breakage) of this fragile dry fruits is added advantage of machine.

This machine is suitable for packing of :

• Snacks Items: Chips, namkeen , farsan, frymes,Popcorn etc.
• Grocery Items: Dals,Peanuts,sugar, nuts,Dry fruit,Whole Spices,Poha,murmura,etc
• Hardware Items : Nuts, Washers, screw, dowel Pins etc
• Confectionery Items: Chocolates, lollipop, candies, toffees etc
• Frozen Foods: green peas, Chopped  carrot, okra, prawns, shrimps etc

NOTE: THE SPEED OF MACHINE MAY VARY ACCORDING TO PRODUCT AND GRAMMAGE.

Optional Accessories for FFS M/C

• Nitrogen gas flushing unit
• Hole punching unit
• TTO for batch / date printing
• Gusseting unit
• Fast change of film roll unit
• D Cut.

Features :

• "Made In India" Multi head weigher, it incorporates the entire electrical, electronic , micro controller based system conceived designed, developed & manufactured in our state of art manufacturing facility.
• The software developed by our R & D team is incorporated in this machine.
• The HMI (Human Machine Interface) is a large touch screen (Size 215 mm(W) x 160mm (H)x 60mm (D) with indigenously developed software
• Motorized pulling system
• Strip or individual count cutting provided.
• Machine works on single phase.
• In house manufacturing of all electronic control instruments.

WE HAVE DIFFERENT MODELS FOR DIFFERENT PRODUCTION REQUIREMENT, LOW, MODERATE AND HIGH PRODUCTION CAPACITY.
