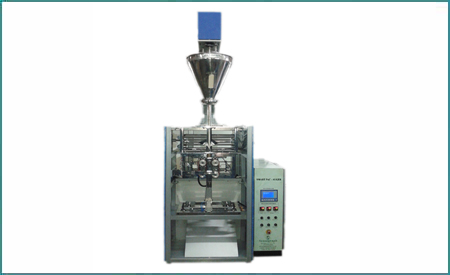

Fully Automatic Auger Filler Machine

In auger filler machine, the material to be filled is stored in the hopper. The stirrer of the machine facilitates the prevention of any bridging of the material. The Servo motor drive of the machine provides the perfection of accuracy and speed of the machine.


This machine is suitable for packing of :

• Wheat Flour (Atta)
• Rice Flour (Atta)
• Besan Packing
• Spices Packing
• Chilli Powder Packing
• Turmeric Powder Packing
• Dry Cement Packing
• Coffee Powder Packing
• Curry Powder Packing
• Chemical Powder Packing
• Bleaching Powder Packing

Features :
Through different machine models.

• Virtually maintenance free 24X7 operation
• Micro controller based User friendly HMI.
• In house Developed Electric Hardware.
• Feeding mechanism through Servo motor, which enables high speed along with excellent accuracy.
• Eye mark controller for perfect positioning of seal & cut
• Provision for batch printing system (to be selected by you)
• No film -machine stop mechanism (optional)
• No material – machine stop mechanism (optional)
• Easy change of roll system –(optional)
• No’s of pouches produced – count batch wise/day wise.
• Horizontal sealer with servo motor drive available as an option

WE HAVE DIFFERENT MODELS FOR DIFFERENT PRODUCTION REQUIREMENT, LOW, MODERATE AND HIGH PRODUCTION CAPACITY.

Technical Specifications

Parameter	Smart Pac SP
Minimum Order Quantity	1 Unit
Automation Grade	Automatic
Phase	Three Phase
Sealing Type	Center Sealing
Material of Construction	All contact parts SS 304, main frame –powder coated MS pipe/channels
GMP Model	All contact parts – SS 304, main frame –SS304 covered with SS 304 sheet. Mechanical parts – as per engineering design - SS304/MS/Aluminum/rubber/plastic
Sealing Type	Center seal - other sealing available on request
Sealing Method	Intermittent through pneumatic system
Pouch Width	Maximum 620 mm of roll width Translate to 7” pouch width
Pouch Height	Adjustable – maximum 310 mm.
Packing Range	10 gm to 2000 gm* - limited by pouch size
Vertical Seal Width	10 - 20 mm – typically 15 mm
Vertical Travel of Film	Timer belt controlled by stepper motor drive
Pouch Forming Method	Through SS 304 Collar
Horizontal Seal Width	10-15 mm - typically 10 mm
Power Supply	230 V Ac, Single Phase
Power Consumption	2.0 Kw
Half/Full Cut Count	Available
Batch Coding System	Pneumatic ink coding / Hot Foil printing
Heater Control	PID Controller provided on front panel
HMI Display	Alfa numeric , 4” LCD back lit display through micro controller based system
HMI Display	2 nos - 1 for weight setting + 1 for pouch setting
Dispensing Method	By servo driven Auger Screw

Yes! I am Interested

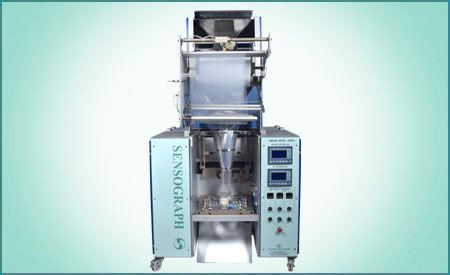

This packaging equipment is fully automatic packing machine which accept material from any of the three dispensing systems namely Auger Filler (Sure PAC) or Cup Filler (V PAC). The smart way of operation of this packaging equipment automatically gained its name “SMART AUTO”. This packaging equipment accepts plastic film, converts it into pouch, accepts material from dispensing system & seals the filled pouches using pneumatically operated heaters. In this packaging equipment, eye mark controller, Full/half cut count system are in built features. The settings for all these systems are available on operator’s finger tips. The pouch is formed using a former which can accept film of width below 390 mm. The vertical travel of the film & the vertical sealing is done through VFD/stepper motor controller. The height of plain pouches ( non printed – no eye mark) is smartly adjusted in this packing machine. The batch coding system is optional.


Technical Specifications

Parameter	Smart Auto - SP
Material of Construction	All contact parts SS 304, main frame –powder coated MS pipe/channels
GMP Model	All contact parts – SS 304, main frame –SS304 covered with SS 304 sheet. Mechanical parts – as per engineering design - SS304/MS/Aluminum/rubber/plastic
Sealing Type	Center seal - other sealing available on request
Sealing Method	Intermittent through pneumatic system
Pouch Width	Maximum 390 mm of roll width Translate to 7” pouch width
Pouch Height	Adjustable – maximum 310 mm.
Packing Range	10 gm to 2000 gm* - limited by pouch size
Vertical Seal Width	10 - 20 mm – typically 15 mm
Vertical Travel of Film	Metallic roller controlled by stepper motor drive
Pouch forming method	Through SS 304 former
Horizontal seal width	10-15 mm - typically 10 mm
Power Supply	230 V Ac single phase
Power Consumption	2.0 Kw
Half/Full cut count	Available
Batch coding system	Pneumatic ink coding / Hot Foil printing
Heater control	PID controller provided on front panel
HMI Display	Alfa numeric , 4” LCD back lit display through micro controller based system
HMI Display	2 nos - 1 for weight ( feed)setting + 1 for pouch setting
Dispensing Method	By servo driven Auger Screw
